Pg_Gather Tool for a PostgreSQL Database Health Assessment

​Pg_Gather will collect and review data from your database using several SQL scripts. After analyzing, it will generate a database health analysis report from the data collected. Everything is written in SQL format to leverage the built-in features of psql, the command-line utility of PostgreSQL.

Pg_Gather is supported in PostgreSQL Versions : 10-17

You can read more about the Pg_Gather tool here.

Pg_Gather Pre-Requisites

Download pg_gather, unzip it, and provision PostgreSQL permissions.

Also, install and create the following pg_stat_statement:

root@ip-172-xx-xx-xxx:/home/ubuntu# wget https://github.com/jobinau/pg_gather/archive/refs/heads/main.zip
root@ip-172-xx-xx-xxx:/home/ubuntu# unzip main.zip
root@ip-172-xx-xx-xxx:/home/ubuntu#  chown -R postgres:postgres pg_gather-main

Creating Sample Tables with Data Using the pgbench Utility

postgres@ip-172-xx-xx-xxx:/home/ubuntu$ pgbench -i -s 50 pgtest
dropping old tables...
creating tables...
generating data (client-side)...
5000000 of 5000000 tuples (100%) done (elapsed 16.99 s, remaining 0.00 s)
vacuuming...
creating primary keys...
done in 34.99 s (drop tables 0.03 s, create tables 0.01 s, client-side generate 17.09 s, vacuum 6.33 s, primary keys 11.54 s).

Creating More Connections and Load on the PostgreSQL Database

postgres@ip-172-xx-xx-xxx:/home/ubuntu$ pgbench -c 10 -j 2 -t 100 pgtest
pgbench (16.2 (Ubuntu 16.2-1.pgdg20.04+1))
starting vacuum...end.
transaction type:
scaling factor: 50
query mode: simple
number of clients: 10
number of threads: 2
maximum number of tries: 1
number of transactions per client: 100
number of transactions actually processed: 1000/1000
number of failed transactions: 0 (0.000%)
latency average = 8.961 ms
initial connection time = 24.249 ms
tps = 1115.956844 (without initial connection time)

Creating Indexes Manually

pgtest=# create index ixd_bid_abalance on pgbench_accounts(bid,abalance);
CREATE INDEX
pgtest=# create index ixd_abalance_bid on pgbench_accounts(abalance,bid);
CREATE INDEX
pgtest=# create index ixd_filler on pgbench_accounts(filler);
CREATE INDEX

Gathering Data from the PostgreSQL Database

postgres@ip-172-xx-xx-xxx:/home/ubuntu/pg_gather-main$ psql -X -d pgtest -f gather.sql > /tmp/out.tsv
postgres@ip-172-xx-xx-xxx:/home/ubuntu/pg_gather-main$ ls -ltrh /tmp/out.tsv
-rw-rw-r-- 1 postgres postgres 255K Mar 13 09:01 /tmp/out.tsv

Analyzing the Pg_Gather Data

Collected data needs to be imported into the PostgreSQL database. It’s recommended to not import this data into the same critical database that you’re assessing. Instead, spin-up a new instance on the same node using the initdb utility with a different port and import the data. Alternatively, you can use a temporary PostgreSQL database.

postgres@ip-172-xx-xx-xxx:/home/ubuntu/pg_gather-main$ psql -f gather_schema.sql -f /tmp/out.tsv
**Dropping pg_gather tables**
**Creating pg_gather tables**
Query buffer reset (cleared).
COPY 1
Tuples only is on.
Query buffer reset (cleared).
COPY 1
COPY 5
COPY 5000
COPY 4
COPY 1
COPY 366
COPY 27
COPY 0
COPY 92
COPY 170

Generating the Postgres Database Report

postgres@ip-172-xx-xx-xxx:/home/ubuntu/pg_gather-main$ psql -X -f gather_report.sql > GatherReport.html

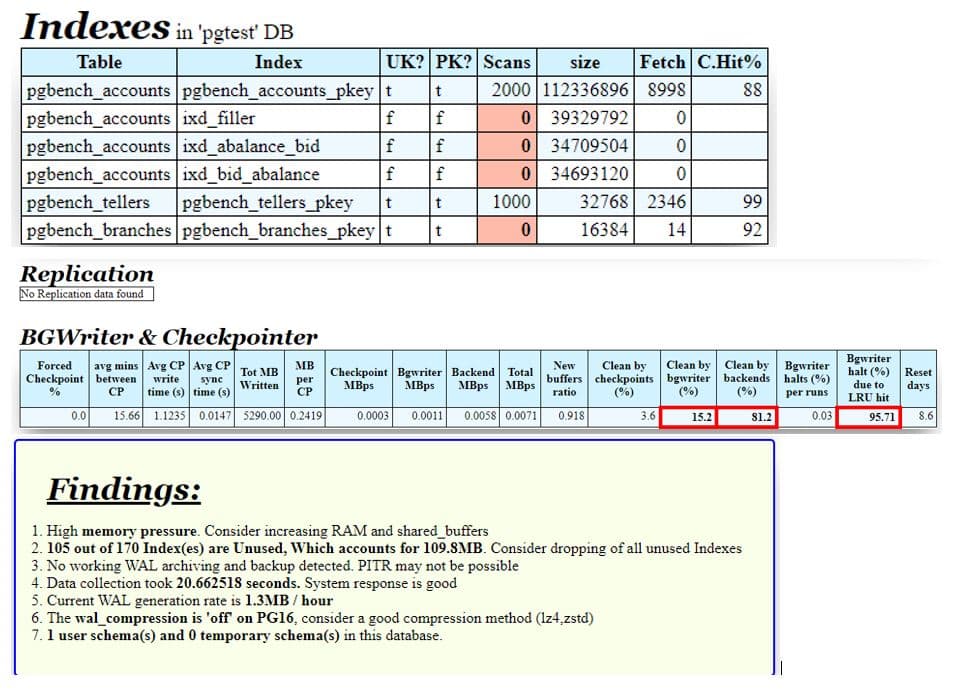

Once the PostgreSQL database health report is generated, you will see a report that is similar to the following example screenshots:
