3 Common Log Shipping Failure Errors a DBA Can Fix

Eric Russo | | August 10, 2016

Log Shipping Failure

Log shipping is a very old technology solution provided by the SQL Server product to achieve high availability. This feature works under the transaction log backup. The backups are taken from the primary database, shipped to the secondary server, and restored on the secondary database on a regular basis. The frequency of the backup, copy, and restore can be defined while doing log shipping configuration and can be changed later, easily, if needed.

One of the advantages of this technology is that we can define more than one server, and this server can be in a secondary role. We can also have a monitored server, which can record the history and the status of the backup, copy, and restore operations and, optionally, raise alerts if these operations fail to occur as per the defined schedule.

Let’s look at some potential errors you could receive, their explanations, and some suggested solutions.

Error #1: Exclusive access could not be obtained because the database is in use.

Here is the message which can sometimes be seen in the restore job of SQL Server log-shipping.

2016-07-24 21:58:32.42  *** Error: Could not apply log backup file ‘C:\LS_Secondary\LogShippingDB_20160724162612.trn’ to secondary database ‘LogShippingDB’.(Microsoft.SqlServer.Management.LogShipping) ***
2016-07-24 21:58:32.42  *** Error: Exclusive access could not be obtained because the database is in use.
RESTORE LOG is terminating abnormally.(.Net SqlClient Data Provider) ***

Here are the configurations that will create this error in log shipping:

  1. Secondary is configured as read-only.
  2. There were connections to the database when restore was attempted.

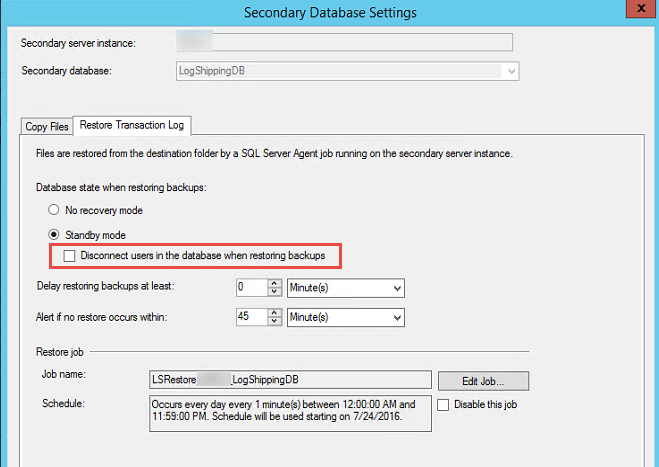

  3. The option “disconnect users…” is unchecked, as shown below.

Database Settings

The error itself is not a problem unless it is causing the restore process to halt. If this happens across an extended period of time, you’ll want to step in to fix it.

Solution: Based on the business situation, you can enable the checkbox.

Error #2: The log in this backup set begins at LSN <#>, which is too recent to apply to the database

This is another error which is seen in various log shipping production scenarios.

2016-07-25 07:37:12.34  *** Error: The file ‘C:\LS_Secondary\LogShippingDB_20160725020411.trn’ is too recent to apply to the secondary database ‘LogShippingDB’.(Microsoft.SqlServer.Management.LogShipping) ***

2016-07-25 07:37:12.34  *** Error: The log in this backup set begins at LSN 79000000014400001, which is too recent to apply to the database. An earlier log backup that includes LSN 79000000011200001 can be restored.
RESTORE LOG is terminating abnormally.(.Net SqlClient Data Provider) ***

Log shipping works on the concept that each transaction backup log forms a chain with the previous transaction log backup. If we try to skip any of the log backups, then above error would be encountered. To find our missing backup, we can use MSDB backup history tables or ERRORLOG file. Both of them contain information about backup type, location etc.

2016-07-25 07:32:11.95 Backup     Log was backed up. Database: LogShippingDB, creation date(time): 2016/07/24(21:53:30), first LSN: 79:48:1, last LSN: 79:80:1, number of dump devices: 1, device information: (FILE=1, TYPE=DISK: {‘C:\LS\LogShippingDB_20160725020211.trn’}). This is an informational message only. No user action is required.

2016-07-25 07:33:11.83 Backup     Log was backed up. Database: LogShippingDB, creation date(time): 2016/07/24(21:53:30), first LSN: 79:80:1, last LSN: 79:112:1, number of dump devices: 1, device information: (FILE=1, TYPE=DISK: {‘C:\LS\LogShippingDB_20160725020311.trn’}). This is an informational message only. No user action is required.

2016-07-25 07:33:32.22 Backup     Log was backed up. Database: LogShippingDB, creation date(time): 2016/07/24(21:53:30), first LSN: 79:112:1, last LSN: 79:144:1, number of dump devices: 1, device information: (FILE=1, TYPE=DISK: {‘C:\Program Files\Microsoft SQL Server\MSSQL13.MSSQLSERVER\MSSQL\Backup\Extra.trn’}). This is an informational message only. No user action is required.

2016-07-25 07:34:11.69 Backup     Log was backed up. Database: LogShippingDB, creation date(time): 2016/07/24(21:53:30), first LSN: 79:144:1, last LSN: 79:176:1, number of dump devices: 1, device information: (FILE=1, TYPE=DISK: {‘C:\LS\LogShippingDB_20160725020411.trn’}). This is an informational message only. No user action is required.

We have highlighted the log backup which is failing. Now, we need to go back in time and find out why the previous log didn’t get restored on the secondary server.

Solution: Find the missing log backup and restore it manually in the secondary database. Once restored, the next backups will catch up automatically.

Error #3: Directory lookup for the file <location> failed with the operating system error 2(The system cannot find the file specified.)

The above error is part of the error received during restore of the transaction log backup. Below is the complete message taken from restore job history.

2016-07-25 07:59:12.37     *** Error: Could not apply log backup file ‘C:\LS_Secondary\LogShippingDB_20160725022811.trn’ to secondary database ‘LogShippingDB’.(Microsoft.SqlServer.Management.LogShipping) ***

2016-07-25 07:59:12.37     *** Error: Directory lookup for the file “C:\NewLocation\LogShippingDB_log_new1.ldf” failed with the operating system error 2(The system cannot find the file specified.).

File ‘LogShippingDB_log_new’ cannot be restored to ‘C:\NewLocation\LogShippingDB_log_new.ldf’. Use WITH MOVE to identify a valid location for the file.

Problems were identified while planning for the RESTORE statement. Previous messages provide details.

RESTORE LOG is terminating abnormally.(.Net SqlClient Data Provider) ***

2016-07-25 07:59:12.43     *** Error: The log backup file ‘C:\LS_Secondary\LogShippingDB_20160725022811.trn’ was verified but could not be applied to secondary database ‘LogShippingDB’.(Microsoft.SqlServer.Management.LogShipping) ***

The error is caused when a new file is added to the primary database and the path of new file doesn’t exist on a secondary server.

Solution: There are two ways to solve the error mentioned above:

  1. Create the same path on the secondary server where the restore is failing.
  2. If it’s not possible to recreate the path on the secondary server, then we need to restore the failing log manually using “WITH MOVE” and move the new file to a valid location on the secondary server.

There might be other causes of log shipping failure, including network issues, but these are the most commonly observed ones, each of which can be fixed by the DBA. Have you seen other errors I haven’t mentioned here? What were they and what solution did you use?
