Set Up and Modify Your SSH Key in the Oracle Cloud Environment

Author: Megan Elphingstone | | August 9, 2017

Creating an SSH key is part of the Oracle Cloud service setup, and it’s required for direct access to the Oracle Virtual Machine.  Once your key is set up, you may want to grant access to an additional user or two, which requires modifying the existing key.  In testing this, I ran into a few challenges and found a work around. This blog post will cover the initial setup, how to add an SSH key, and how to resolve issues.

The Oracle Documentation walks you through the steps for the initial setup, but adding a second key was a little confusing.  Adding a third key was a problem that had to be solved.

Initial SSH Key Setup

An SSH key is required as part of the creation of your cloud service.

To create the key on UNIX, use the following command:

ssh-keygen -t rsa -b 4096 -C “[email protected]

Example:

$ ssh-keygen -t rsa -b 4096 -C [email protected]

Generating public/private rsa key pair.
Enter file in which to save the key: ./oracle_cloud_keys/oracle_cloud_dbaas_key
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in ./oracle_cloud_keys/oracle_cloud_dbaas_key.
Your public key has been saved in ./oracle_cloud_keys/oracle_cloud_dbaas_key.pub.
The key fingerprint is:
SHA256:h5iokbrnhzh9XFOsohLMpxmkTSZo9BifV [email protected]
The key’s randomart image is:
+—[RSA 4096]—-+

$ cd oracle_cloud_keys

ls -l

-rw——-  1 megan.elphingstone  staff  3326 Jun 29 13:00 oracle_cloud_dbaas_key
-rw-r–r–  1 megan.elphingstone  staff   743 Jun 29 13:00 oracle_cloud_dbaas_key.pub

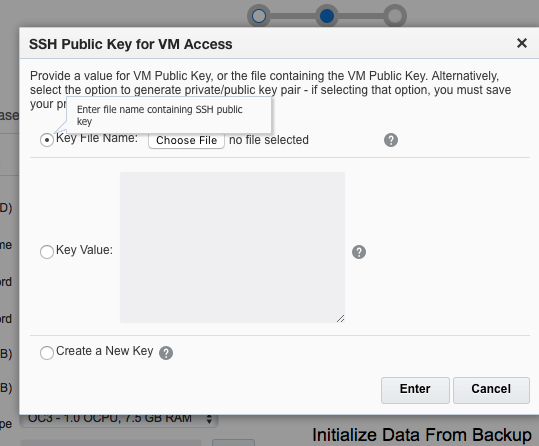

The public key is added to your cloud setup as shown below:

Copy the txt of your public key, or choose the file:

Continue with the creation of the initial database environment.

Once your environment has been setup, you may be ready to turn this over to your team or to share the environment with another DBA.  Other DBAs that require server access will need to setup their own public/private key pair for access.  Here is how to add another user’s public key to your cloud environment.

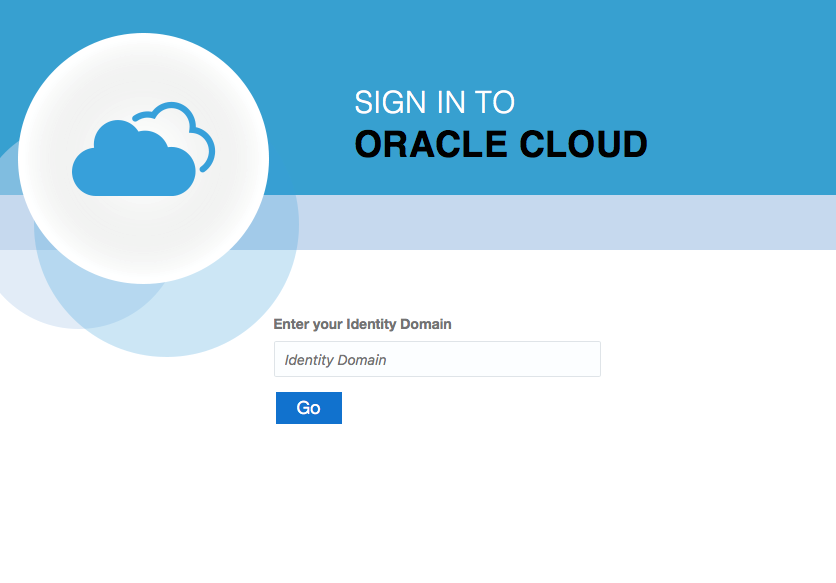

Enter your Identity Domain and then login with your username and password.

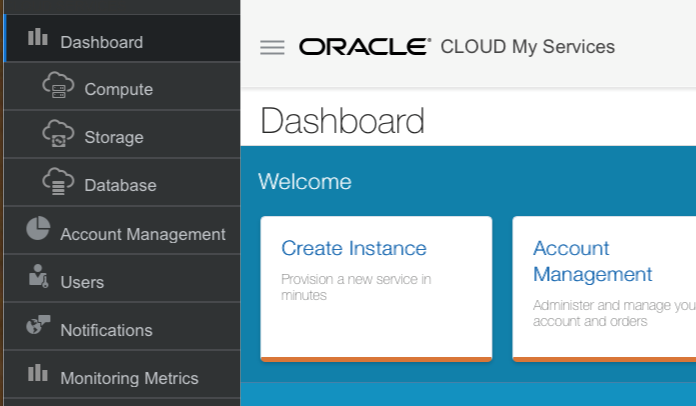

Access the SSH setup here by clicking on the three lines on the left:

Then click on “Database”

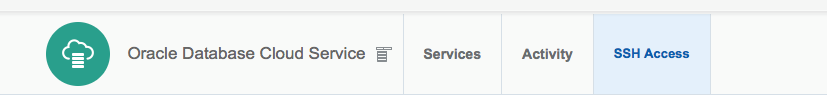

Click on SSH Access

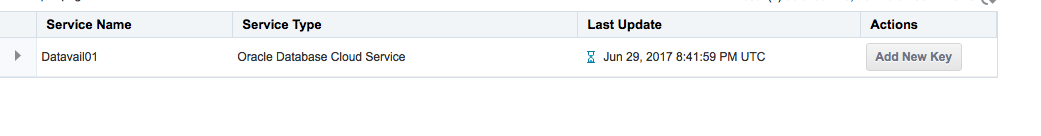

Click on Add New Key

My first instinct here was to click Add New Key, but that wasn’t the right choice:

That leaves us two choices:

“Upload a new SSH Public Key value from a file”
Or clicking on “Key Value”

Since we were testing, we tried the first option and uploaded the key from a file.  However, once this was completed, we saw that it had overwritten the prior key.  So – that’s not what you want if you are trying to add to the existing key. (Unless you create a file that has the existing key in addition to the new key.)

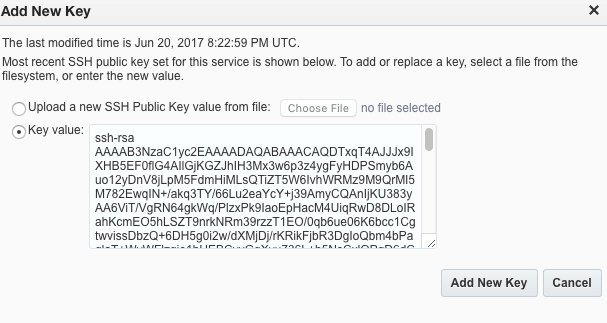

To add a key, click on the “Key Value,” this will allow you access to the existing key values:

Scroll to the end of the existing text and hit the carriage return and paste the new key:

Now click “Add New Key”

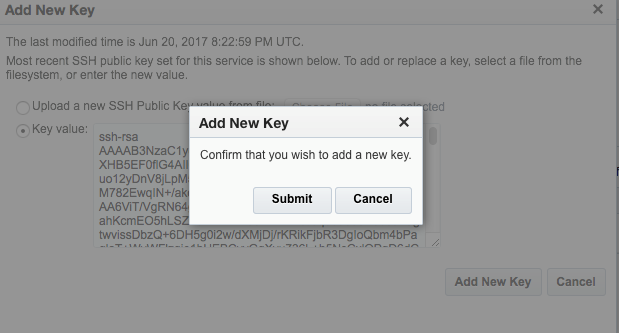

Click Submit

At this I got an hour glass and the “add new key” was grayed out.  I had to refresh to see that it was successful.

I was able to add a second key this way.  But when I added a third key, I received the following error message:

Clicking on the exclamation point for more info gave me the following:

Failed to resetting the user ssh key, try again! Error message: SSH keys reset on VMs failed

I tried to add all three keys to a file and upload the file.  This appeared to be successful, but when I tested them, the third key didn’t work.  Looking at the Key Value showed that the third key was incomplete.  This led me to believe there is a character limit on the Add New Key section of the Cloud Service webpage.

As an experienced DBA, I solved this the way I would have before the cloud – by editing the authorized key file on the server.  Proceed with caution, and always create backups.

I logged in to the server with the first SSH key I created: Then I made a backup of the existing authorized_keys file.

$ ssh -i  oracle_cloud_dbaas_key oracle@IPaddress

Enter passphrase for key ‘oracle_cloud_dbaas_key’:

[oracle@server ~]$ pwd
/home/oracle
[oracle@server ~]$ cd .ssh
[oracle@server .ssh]$ ls -ltr
-rw-r--r-- 1 oracle oinstall 3574 Jul  3 17:55 authorized_keys.bk
-rw-r--r-- 1 oracle oinstall 4302 Jul  6 20:10 authorized_keys

After creating the backup, I edited it to add my third key to the end of the file.  I can now login via all three keys.

In a real-world application, the DBA who did the initial setup may need to add the public keys for any additional DBAs who need server access.  When I began testing this, I received a warning message that saving a new SSH key would require a server reboot, and that message no longer appears.  The Oracle Cloud is evolving quickly, and this SSH administration issue may soon go away, but for the time being, I hope this blog post saves you some setup time, so you can go straight to testing the Oracle Cloud for your business needs.
